Lighting & experience
Architectural lighting, engineered and fully controllable
Façade, canopy, landscape and decorative layers on one Pharos control system, synchronised with the façade LED screens — dimmable, automated and planned for energy.
01 · Live
Day / night — control the façade
Dimming
8.7 kW liveWhite range 2700–4000 K on IntelliHue families; canopy linear fixed 3000 K.
02 · Integration
Façade light and LED screen brightness, one curve
The same photocell drives Pharos lighting scenes and the NovaStar brightness schedule, so screens never outshine the architecture after dusk. Night cap and curve are design targets to agree with the authority and OEM.
03 · Automation
Automation rules & energy plan
Automatic mode on the live view follows this plan hour by hour.
Planning estimate from nominal allowances (e.g. 45 W per grazer, 350 W/m² average LED draw at full). Final figures follow selected SKUs, IES files and metering.
03b · Landscape

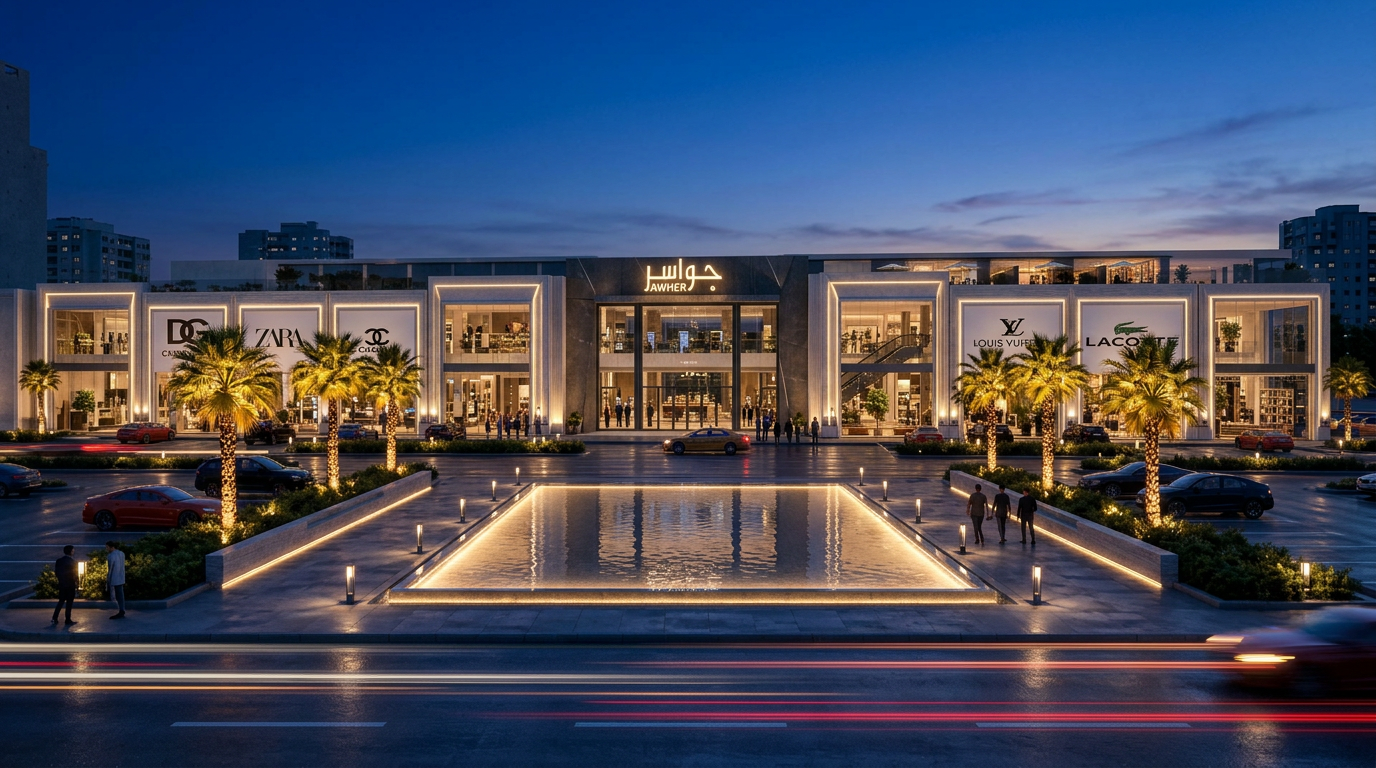

Landscape lighting — the forecourt as a stage
Cinematic scenes
Warm 3000 K glow as the sun sets — architecture first.
Effect
Products that create the theme
Adjustable spike spotlight
Aims up into palm canopies; glare cowl, IP67, 3000 K.
Use · Palms, sculptures
Slim path bollard
Low-glare downlight for walkways; 800 mm, IP65.
Use · Footpaths, drop-off
Underwater pool light
Stainless 316, IP68, RGBW for colour scenes.
Use · Reflecting pool, fountains
Trunk-wrap LED strap
Flexible pixel strap spirals the palm trunk; DMX.
Use · Feature palms
Render and product images are representative illustrations, not manufacturer photos or the as-built scheme. Wattages per fixture are planning assumptions (palm 12 W, bollard 20 W, underwater 12 W, grazer 16 W).
03c · Daylight
Artificial skylight by Yuersky — daylight for dark areas
Area

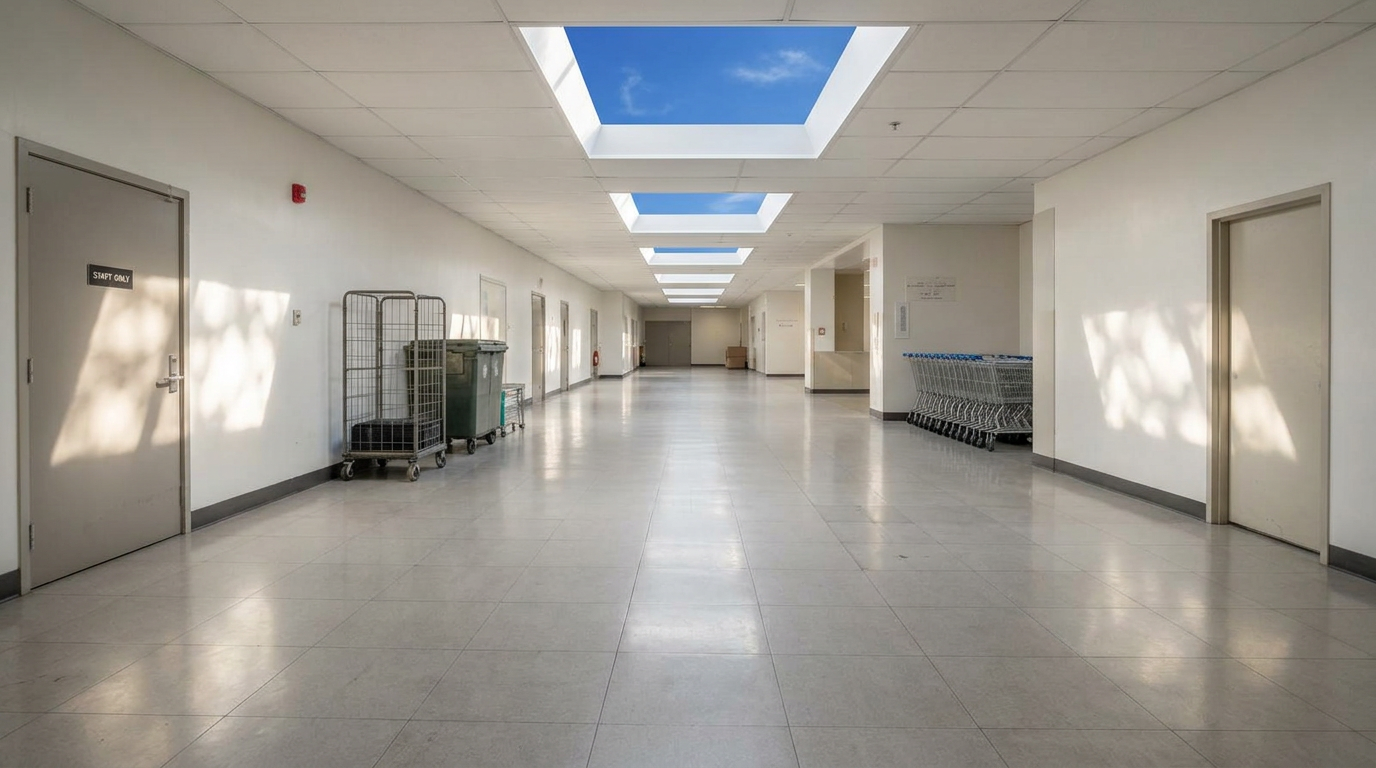

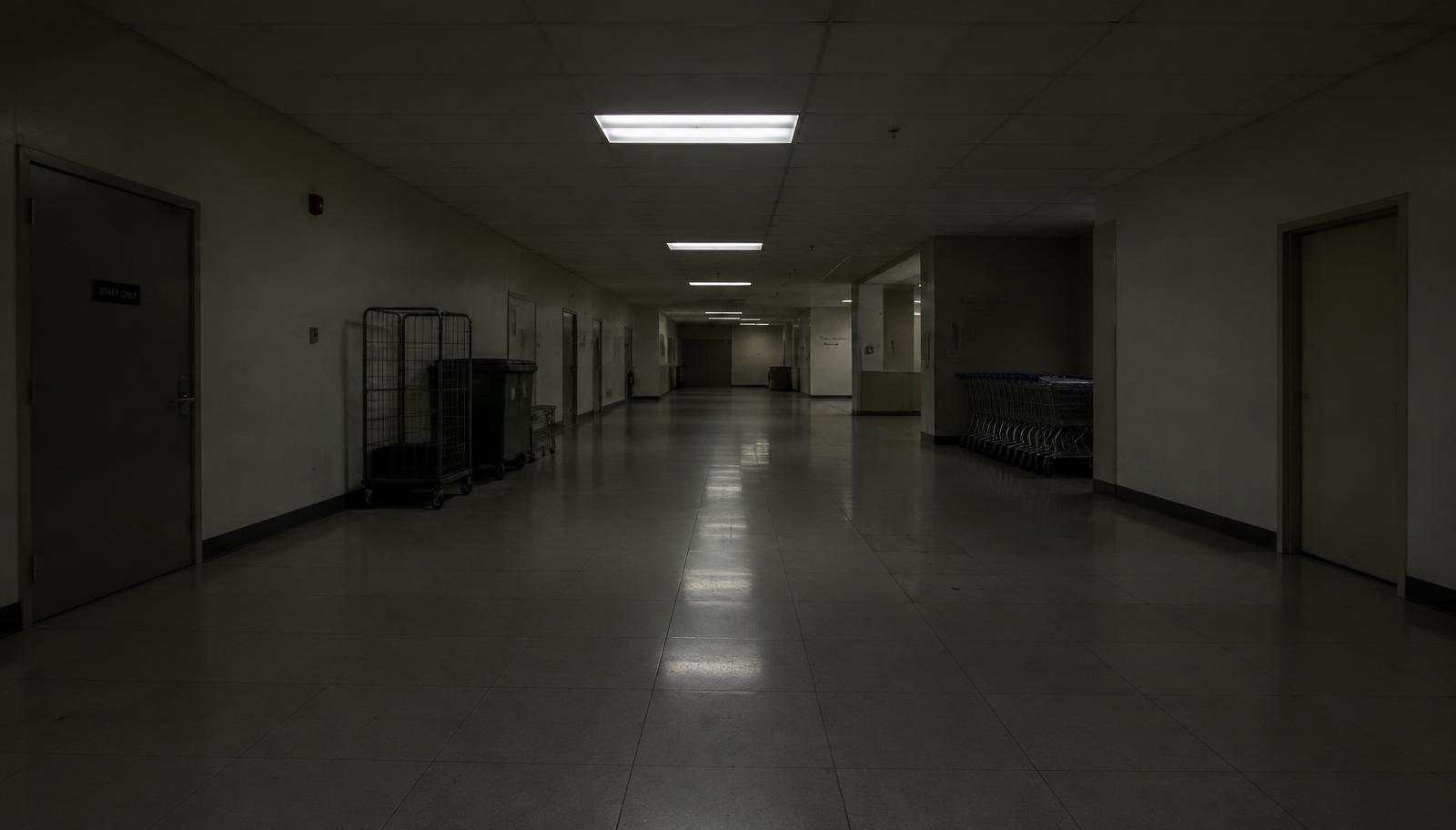

Long windowless corridors become bright, calm walkways that feel open to the sky.
Sky follows the day
Drag across the picture to compare today with the skylight installed.
Daylight feel, anywhere
Recreates a blue sky and sun-like light where no real skylight is possible — basements, corridors, lift lobbies.
Longer dwell time
Brighter, natural-feeling spaces make shoppers linger instead of hurrying through dead zones.
Wellbeing & circadian
Colour temperature follows the day — cool and crisp at noon, warm in the evening.
Energy-efficient LED
LED source, dimmable and scheduled with the rest of the lighting control.
Unlocks dead space
Dull areas become rentable kiosks, seating or pop-up retail.
Integrated control
Linked to the lighting controller so scenes follow the façade and atrium day/night plan.
Images are illustrative renders of typical mall spaces, not American Mall photos or Yuersky product photography. Sizes, output, power and control protocol to be confirmed from the Yuersky datasheet and quotation; ceiling void depth and access must be surveyed.
04 · Engineering
Lighting circuits and control
05 · Equipment
Fixture families

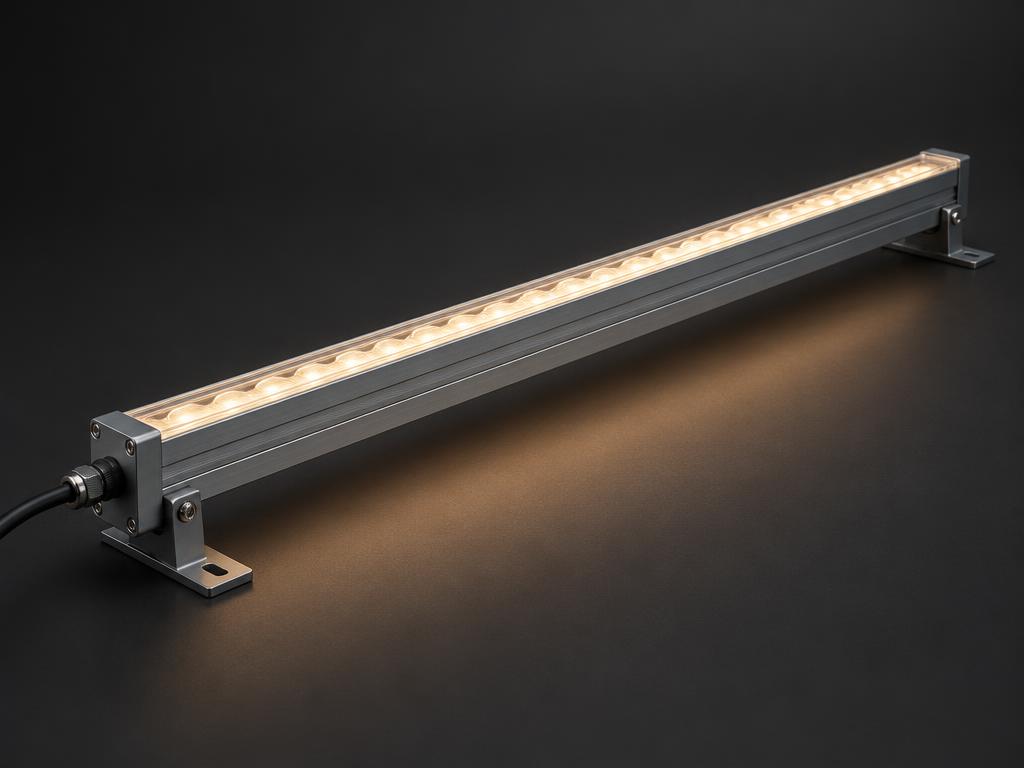

Linear wall grazer
ColorGraze IntelliHue Powercore · AL01
1–4 ft lengths · 10°×60° / 30°×60° · 2700–4000 K

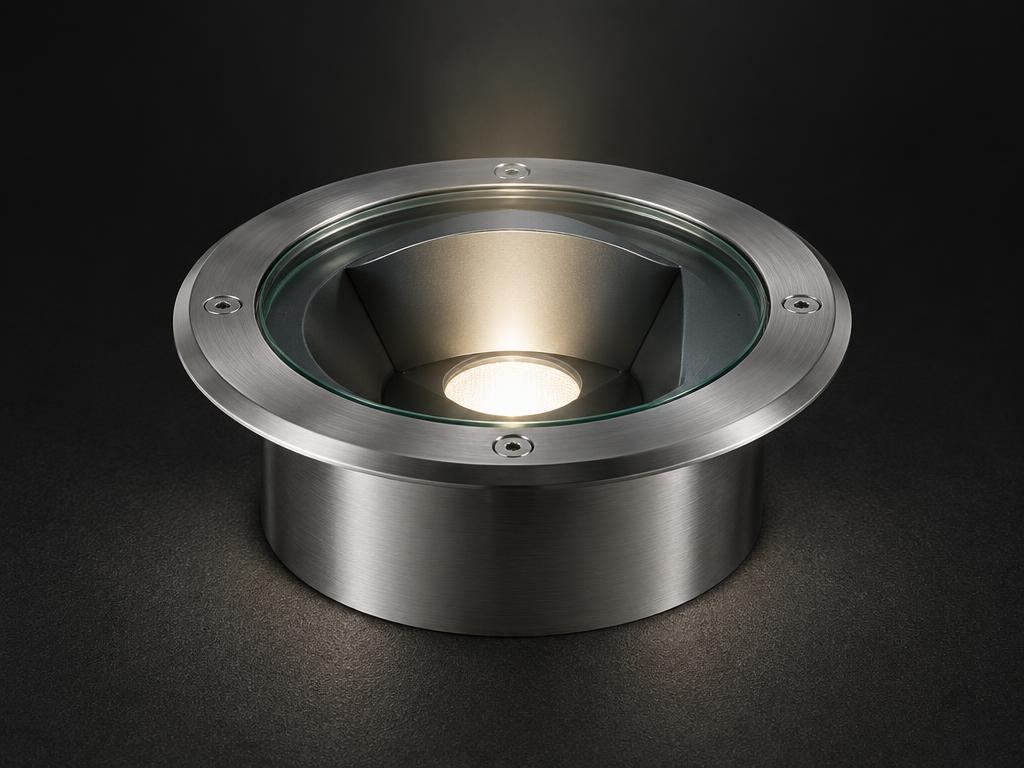

In-grade uplight
BurstScape · AL02
IP67 / IK10 · glare shield · trees & landscape

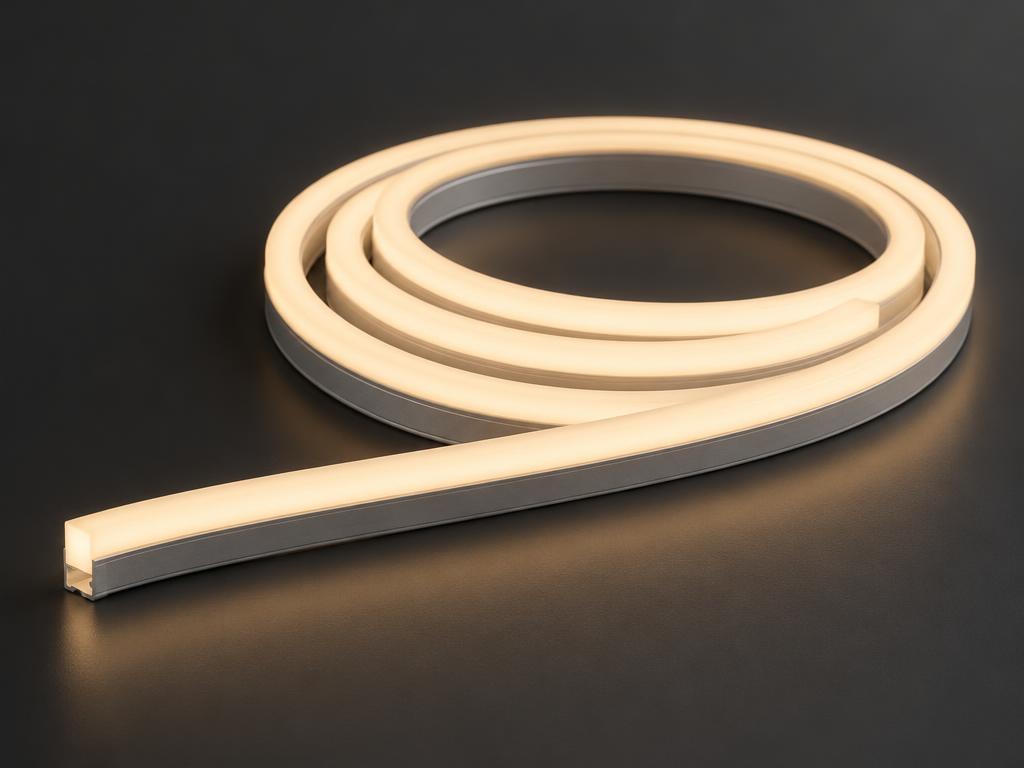

Concealed linear
Warm-white linear · AL03
3000 K · CRI 90+ · continuous diffusion

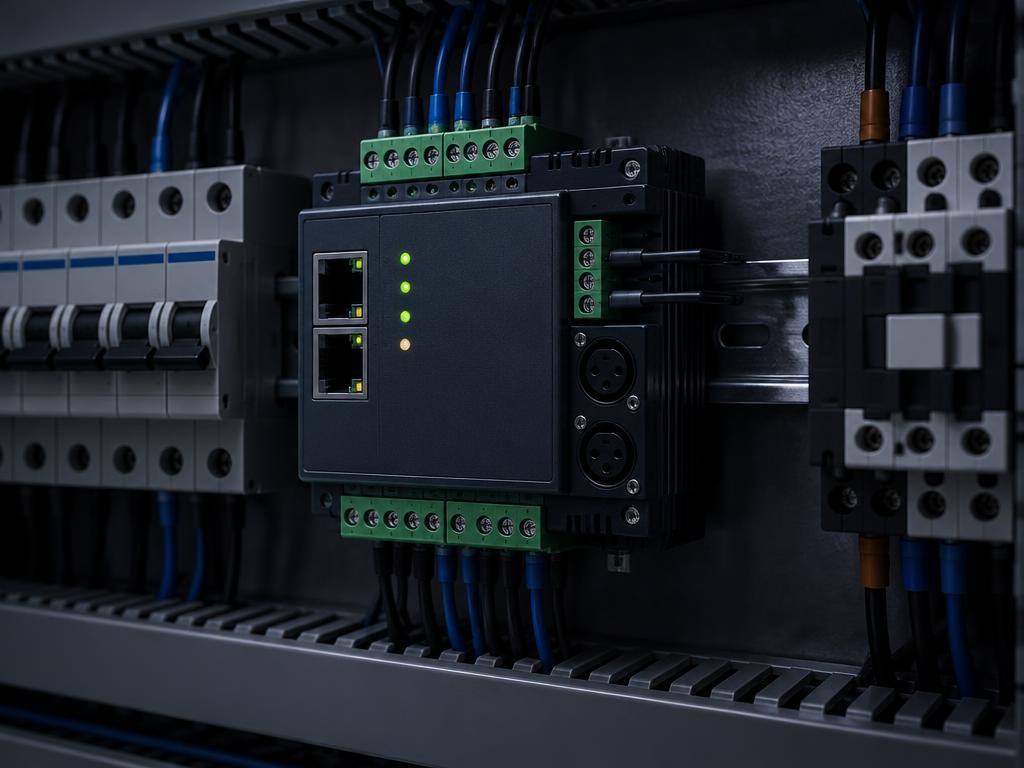

Control processor
Pharos Designer LPC · LC01
eDMX universes · DMX nodes · schedules
Representative product illustrations, not manufacturer photographs. Final finishes follow approved samples.
Architectural fixture schedule
| ID / allowance | Reference family | Application / specification hold |
|---|---|---|
| AL01 24 fixtures | ColorGraze IntelliHue Powercore [V] Nominal 1/2/3/4 ft lengths; beam families include 10° x 60° and 30° x 60°; CRI >80 in 2700–4000 K. [M13] | Propose 4 ft units to selected stone frames. Beam, offset, cell mode, mains load and exact part number follow the façade mock-up. [P] |
| AL02 20 fixtures | BurstScape [V] In-grade family with IP67 / IK10; IntelliHue and white options. [M14] | Selected trees and landscape anchors. Drainage, replaceable service detail, glare shields, no standing water. [P] |
| AL03 40 m allowance | Custom concealed linear warm-white [TBC] Manufacturer / driver SKU TBC — no fictitious Philips part number. | Canopy and bench edges; target 3000 K, CRI 90+, continuous diffusion, accessible drivers. [P] |
| LC01 Controller + nodes | Pharos Designer LPC + compatible power/data interfaces [M16–M17] [V] Coordinates eDMX, Powercore Data Enabler and local controls. | Each family must use its approved driver / power architecture. [P] |
Scene logic
| Scene [P] | Architectural light | Media / audio | Trigger / safeguard |
|---|---|---|---|
| Everyday premium | Warm-white selected frames; soft landscape | Daypart playlists; local BGM levels | Astronomical schedule + manual override |
| Evening retail | Balanced entrance emphasis; terrace dimming | Reduced screen luminance | Measured ambient sensor; approved cap |
| Approved celebration | Time-limited colour accents | Coordinated content, not continuous flashing | Owner approval; local cultural context |
| After-hours / fault | Reduced decorative output | Screens safe fallback / planned off | Security / operations policy; local autonomy |
DMX universe budget
| Universe | Proposed personality / load | Channels | Check |
|---|---|---|---|
| U1 | 24 grazers x 4 cells x 4 channels | 384 [C] | Mode / cell count TBC |
| U2 | 20 uplights x 4 + 8 dimming groups | 88 [C] | Mode TBC |
| U3 / U4 | 100 decorative nodes each x 5 channels | 500 each [C] | Within 512 per universe |
